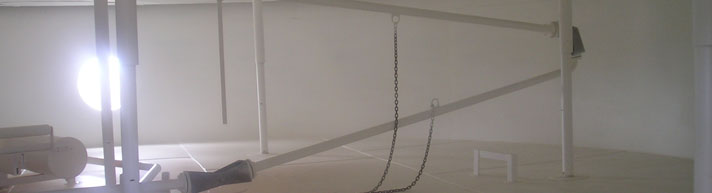

Bending Point System


Overview

The HMT PIVOT MASTER™ Floating Roof Drain System is designed to innovatively provide a better solution to floating roof drainage problems. Introduced in 1982, this system combines the flexibility of the various flexible hose / pipe systems with the strength found in rigid pipe / swivel joint systems. The PIVOT MASTER™ Drain System is a steel pipe drain system with flexible hose joints capable of withstanding an extremely wide range of service conditions.
The system effectively provides positive roof drainage with maintenance-free and worry-free operation. This results in extended service life, with no hose kinking or clogging, and no stress loading on O-rings, bearings or seals. Instead of costly swivels, the PIVOT MASTER™ employs unique flexible joints in a straight-line design, with no offsets to cause unbalanced loading.
The PIVOT MASTER™ is easily installed in a fixed position, requiring a minimal operating area. With a designed continuous slope, the PIVOT MASTER™ does not allow sediment to become trapped in the system. It is designed for submerged service with no lubrication required, and there are no corrosion freeze-ups. PIVOT MASTER™ components are compatible with 100% aromatic products and can withstand high design pressures.
Designs available: Standard - For normal floating roof low leg heights; Low Profile - Two designs for low heel tank designs; Multiple - Two or more standard or Low Profile drains per tank
PIVOT MASTER™ Drain Systems can be designed to avoid interferences with heating coils, diffusers and other internal obstructions. Stress and flow rate calculations are available upon request.

The patented HMT PIVOT MASTER™ Flexible Joint was designed to provide a superior solution to floating roof drainage over mechanical swivel joints and flexible hoses.
The HMT PIVOT MASTER™ Flexible Joint consists of a specially designed composite type hose containing ANSI 150# raised faced flanges secured in place by a pivotal steel side plate structure.
The composite hose is designed with inner and outer stainless steel wire helixes and multiple inner layers of polar and non-polar elastomeric materials. The stainless steel wire helixes maintain the hose rigidity when subjected to internal or external pressures. Utilizing various layers of Polar and Non-Polar elastomeric materials prevents permeation of products through the hose along with providing a 100% aromatic resistant barrier.
The composite hose is secured within two reinforced steel side plates (primed or galvanized carbon steel or stainless steel). These side plates are joined by a stainless steel pivotal pin that uses stainless steel bushings and spacers to eliminate binding and assure flexibility.
Applications of the PIVOT MASTER™ Flexible Joint include, but are not limited to, Floating Roof Drain Systems, Floating Suctions Systems and Floating Skimmer Systems.

Key Benefits

Continuous slope promotes free flow
Continuous slope eliminates sediment trap areas
Fixed position doesn’t interfere with tank internals
Low-profile options available
Small, unobstructed area required for operation
Fixed position does not scrape or drag on tank bottom
Compatible with wide range of products
No maintenance required
No lubrication required
No stress or load on hose end connections
No leaking due to offset tank joints
No leaking due to deterioration of O-rings, bearings or seals
System designed for submerged external pressure use
High operating pressure
No system damage due to tank turbulence
In stock for immediate delivery

PIVOT MASTER™ Resources

PIVOT MASTER™ Floating Roof Drain System Brochure
Product Photo Gallery
Links to Applicable Standards including: API 650, API 653 & API 2000
